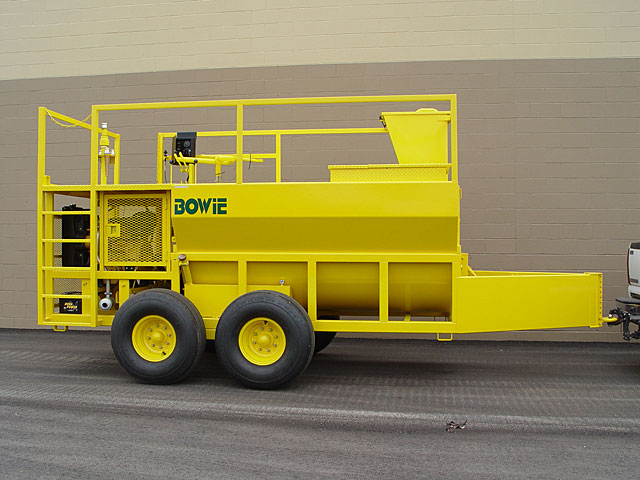

Bowie ADCM 800 / Bowie ADCM 1100 – Alternative Daily Cover Mulchers

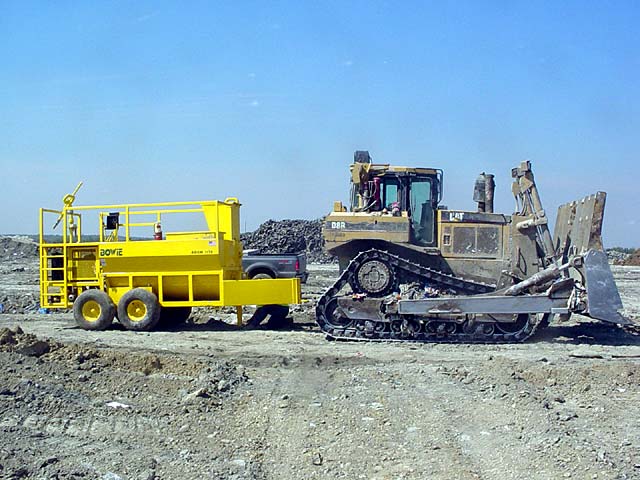

The Bowie ADCM Series is engineered for municipal solid waste facilities that require efficient, reliable, and cost-effective daily cover application. Equipped with a powerful Yanmar diesel engine, Bowie’s high-performance gear pump technology, and an optimized tank design, the ADCM 800 and ADCM 1100 deliver fast application rates, low maintenance requirements, and maximum reliability under demanding field conditions.

Both models provide exceptional performance in spraying soil blends, fiber-based cover materials, and specialized environmental coating mixtures. With an operator-friendly layout, easy maintenance access, and a rugged heavy-duty frame, the ADCM Series is the ideal solution for professional operations seeking long service life and reduced operating costs.

Technical Specifications

ADCM 800

  • Engine: Yanmar 47 hp Diesel

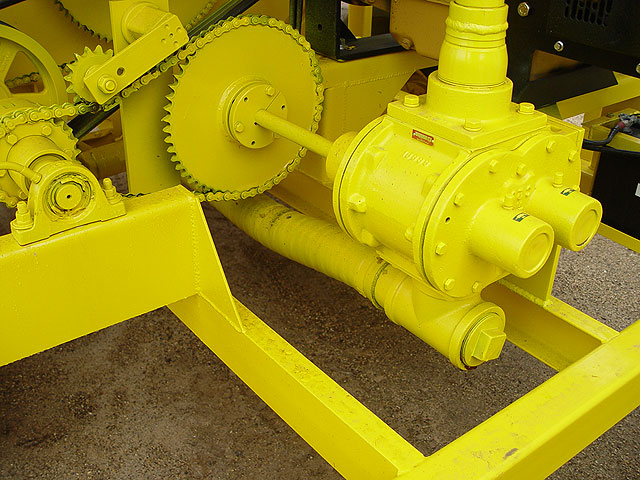

  • Pump: 3500 IB Bowie Gear Pump

  • Length: 16’-10’’ (513 cm)*

  • Width: 7’-6’’ (229 cm)*

  • Height: 8’-6’’ (259 cm)*

  • Empty Weight: 6,245 lbs (2,833 kg)

  • Liquid Capacity: 958 US Gallons (3,626 Liters)

ADCM 1100

  • Engine: Yanmar 47 hp Diesel

  • Pump: 3500 IB Bowie Gear Pump

  • Length: 18’-5’’ (561 cm)*

  • Width: 7’-6’’ (229 cm)*

  • Height: 8’-6’’ (297 cm)*

  • Empty Weight: 6,880 lbs (3,121 kg)

  • Liquid Capacity: 1,134 US Gallons (4,292 Liters)

*Dimensions may vary based on configuration and optional equipment.

Standard Parts & Equipment

(Both Models)

  • Clear Water Flush System

  • 4 Spray Nozzles (EC1735, EC1739, EC1740, EC1749)

  • 4-Part F Quick Couplers

  • 1-Part D Quick Coupler

  • Spanner Wrench

  • Parts Manual

  • Engine Manual

Warranty Information

Standard Warranty

  • 1-Year Limited Warranty covering structural components and manufacturing defects.

  • Yanmar Engine Warranty: Typically 2 years or 2,000 hours, provided directly by Yanmar.

  • Hydraulic System: 1-year warranty.

  • Pump Assembly: 1-year warranty for defects in materials and workmanship.

Exclusions

  • Wear parts (nozzles, hoses, seals, couplers).

  • Misuse, improper maintenance, or improper flushing.

  • Chemical corrosion caused by incompatible materials.

Key Advantages

  • Heavy-duty design ideal for municipal solid waste facilities

  • Reliable engine + gear pump combination

  • High-volume material handling capability

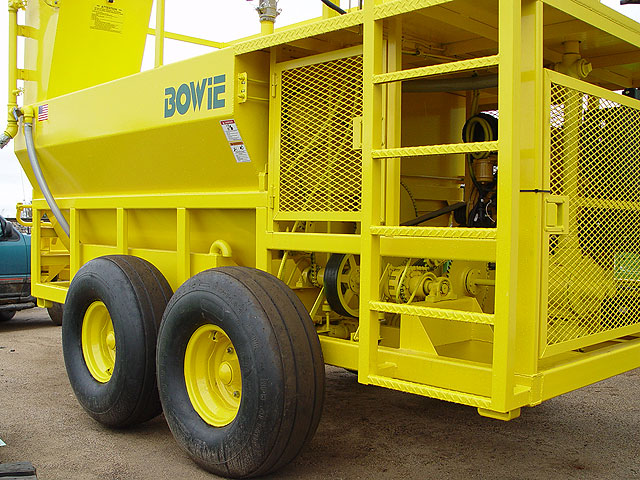

  • Easy maintenance with full-access panels

  • Consistent and uniform application performance

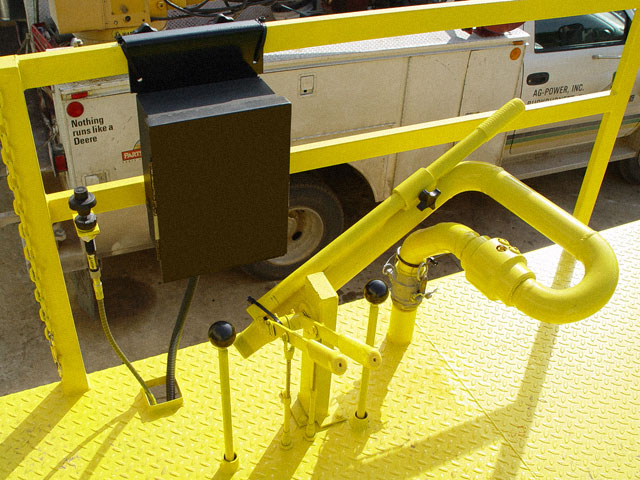

  • Operator-friendly controls
